WIRELESS AC POWER DETECTOR CIRCUIT DIAGRAM SIMPLE

           WIRELESS AC POWER  DETECTOR CIRCUIT DIAGRAM

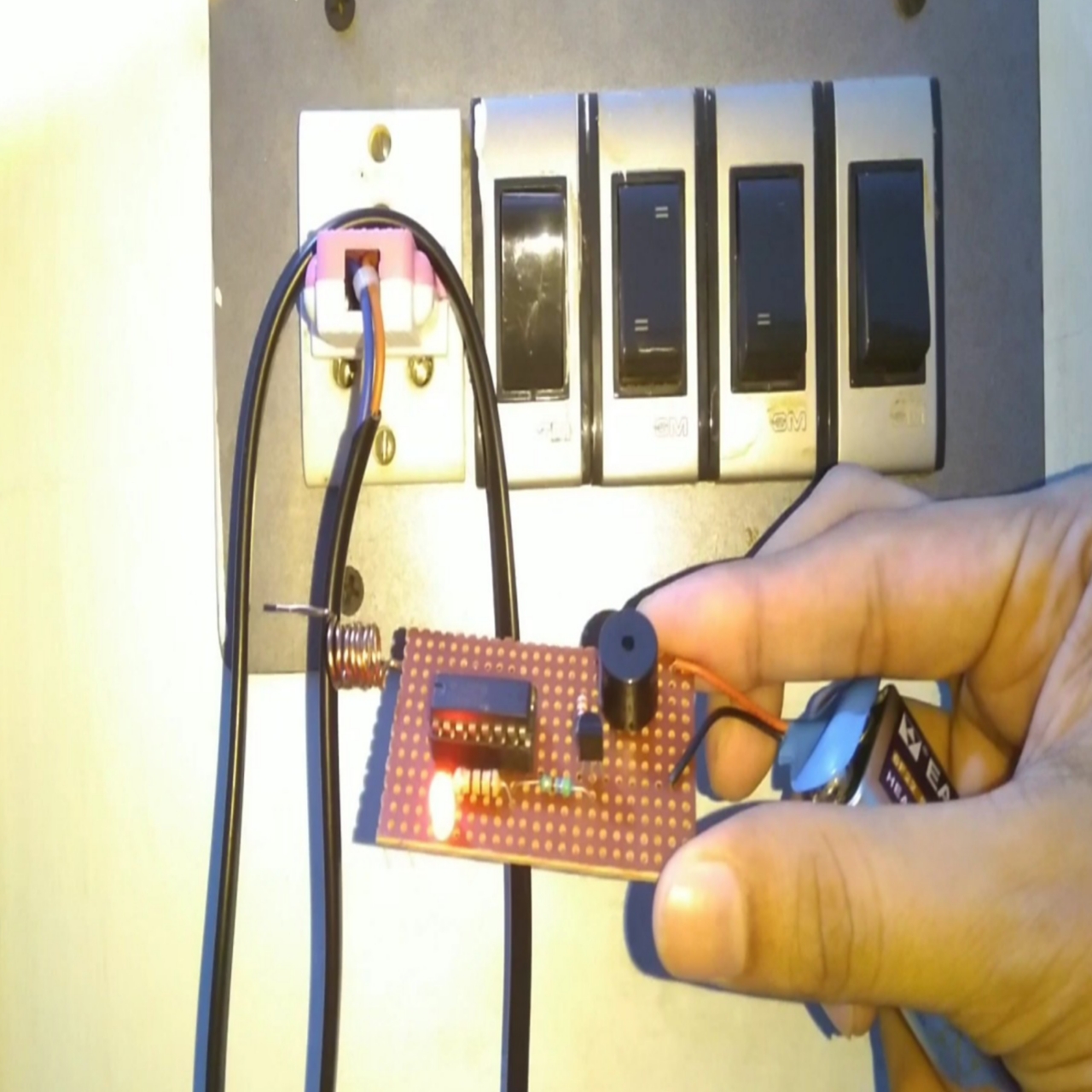

 This is a simple wireless ac power detector circuit which detects the presence of ac supply in our home.The project uses cd4060 ic to detect the presence of magnetic field at the pin 11 which consists of a coil of 5 turns.We can take any long wire instead,as no specefic coil is needed just a piece of wire is enough.The sensed signal is amplified at pin 7 of ic and the output is given to bc547 transistor at the final stage to drive the buzzer.A 22 ohms resistor is used to limit the current across the buzzer.An led indicator is placed to same pin to visualise the presence of output.

        The principle behind is the presence of mutual induction.For any piece of wire,whenever current is flown through the wire will induce a small voltage across the wire.We know that our home wires have high voltage even if its not a coil form,but the voltage present there is AC which is continuously changing its polarity makes the wire to form an induced voltage around its surface.This small induced voltage is enough to sense the cd4060 ic to detect the presence of ac power at home.
